PIPE INTERNAL POLISHING MACHINE

SECOND GENERATION PIPE INTERNAL POLISHING MACHINE
Main Machine Image
Machine 1
SECOND GENERATION PIPE INTERNAL POLISHING MACHINE
Machine 2

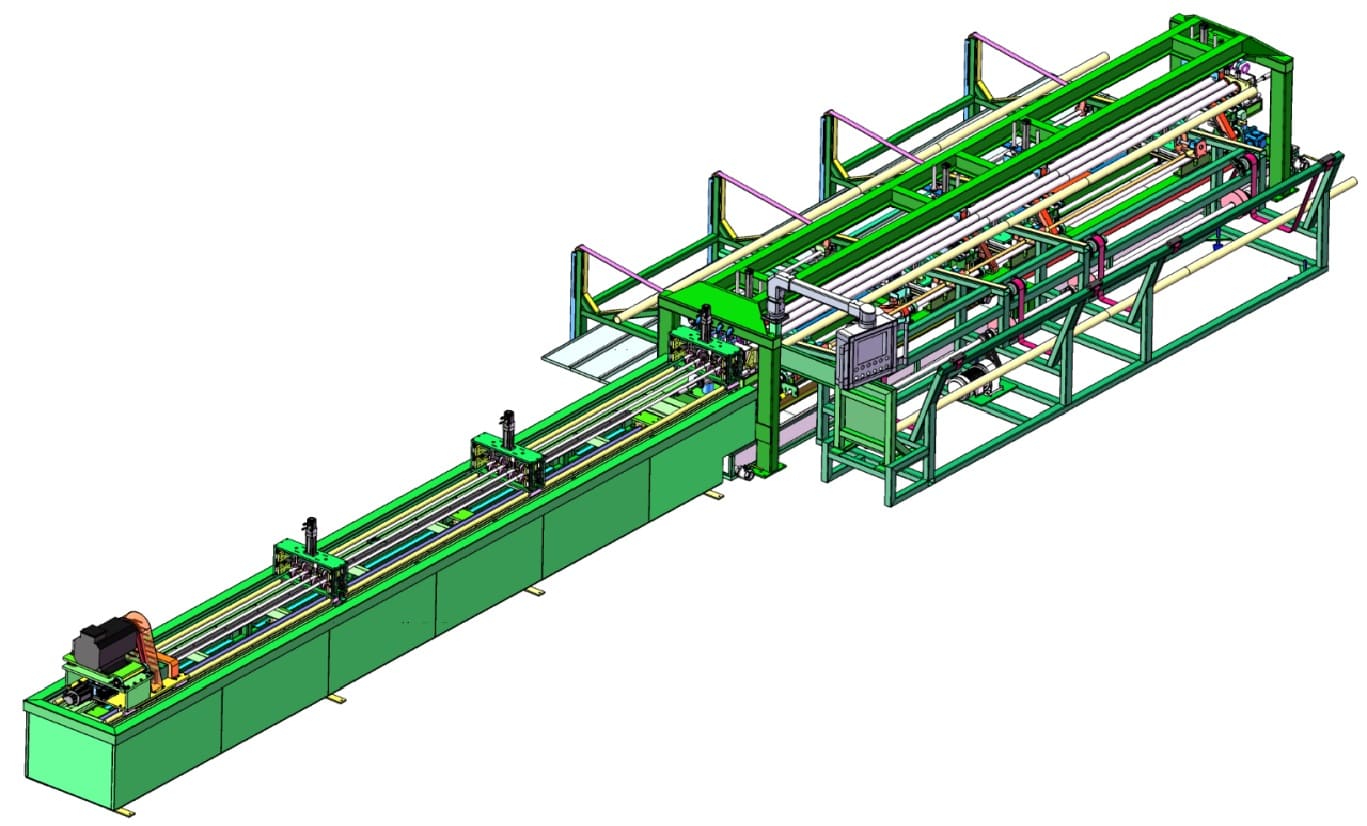

THIRD GENERATION PIPE INTERNAL POLISHING MACHINE
Machine 3

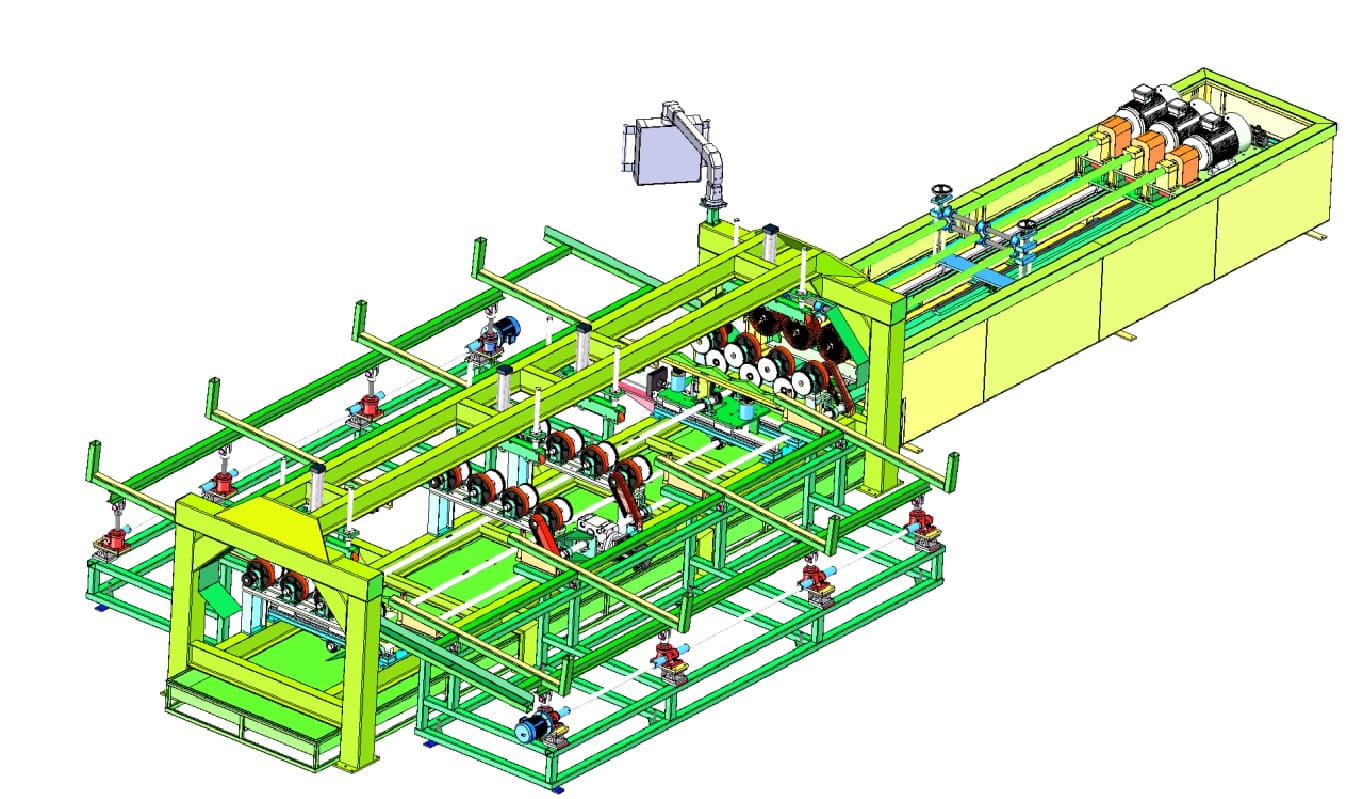

THE FIFTH-GENERATION PIPE INTERNAL POLISHING MACHINE

Technical Specifications

🔷 THE SECOND GENERATION PIPE INTERNAL POLISHING MACHINE

Model Polishing range Polishing length Station Polishing roughness RPM Machine size
MD76φ19~φ761.5-6.1m3≥0.4μm3000r/min13500*4500*2000mm
MD133φ50~φ1331.5-6.1m3≥0.4μm3000r/min13500*4500*2000mm
MD168φ76~φ1683-6.1m3≥0.4μm3000r/min17000*4500*2000mm
MD219φ89~φ2193-6.1m3≥0.4μm3000r/min17000*4500*2000mm

🔷 THE THIRD GENERATION PIPE INTERNAL POLISHING MACHINE

Model Polishing range Polishing length Station Polishing roughness RPM Machine size
MD63φ19~φ631-6.1m4≥0.2μm7000r/min15500*4500*2000mm
MD133φ63~φ1331.5-6.1m4≥0.2μm6000r/min15500*4500*2000mm
MD159φ89~φ1591.5-6.1m3≥0.2μm6000r/min15500*4500*2000mm

🔷 THE FIFTH GENERATION PIPE INTERNAL POLISHING MACHINE

Model Polishing range Polishing length Station Polishing roughness RPM Machine size
MD63φ19~φ764-6.1m3≥0.2μm7000r/min15500*4500*2000mm
MD133φ63~φ1334-6.1m3≥0.2μm6000r/min15500*4500*2000mm
MD159φ89~φ1594-6.1m3≥0.2μm6000r/min16000*4400*2300mm
MD325φ114~φ3253-6.1m3≥0.2μm3000r/min16000*4400*2300mm
MD426φ168~φ4263-6.1m3≥0.2μm3000r/min16000*4400*2300mm

Key Features & Benefits

Feature 1
Feature 2
Feature 3
Feature 4
